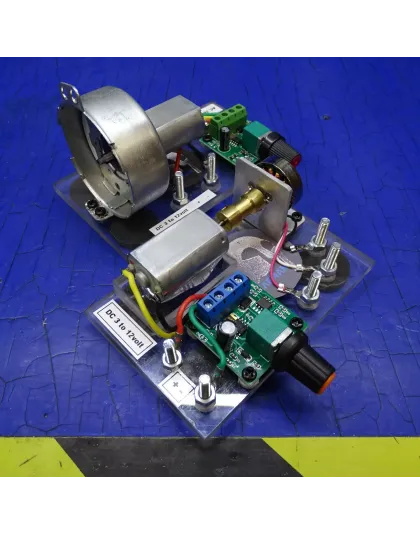

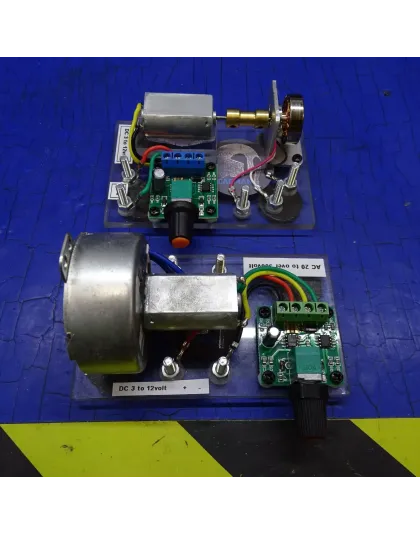

DC Motor to AC Generator, 2 devices, startup 3v to 12volt

ELEMAN by George Chaniotakis


$174.99


Qty:

Total Price:

A big hello to all mankind! Visit my youtube channel &
and find various interesting things on Electrical ~ Mechanical and Electronic ~ Technology...

Buying one helps my research tremendously,
 helping me get all the supplies I need for the future.

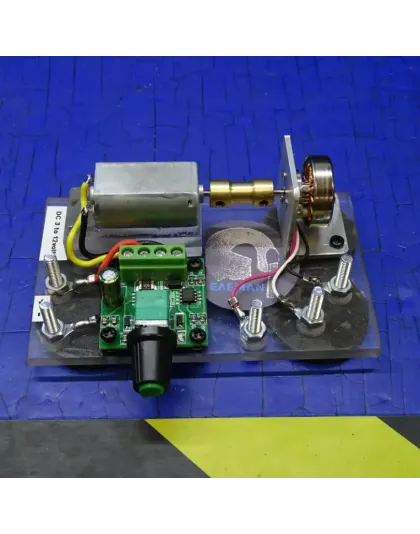

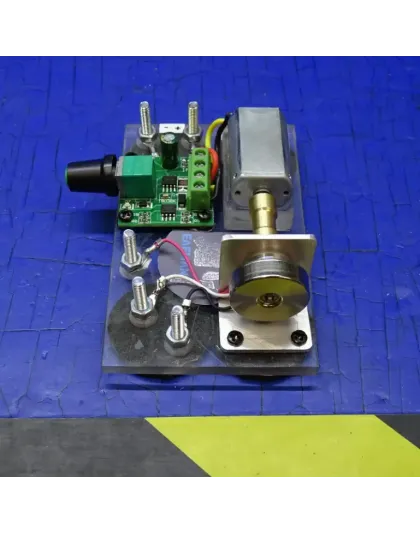

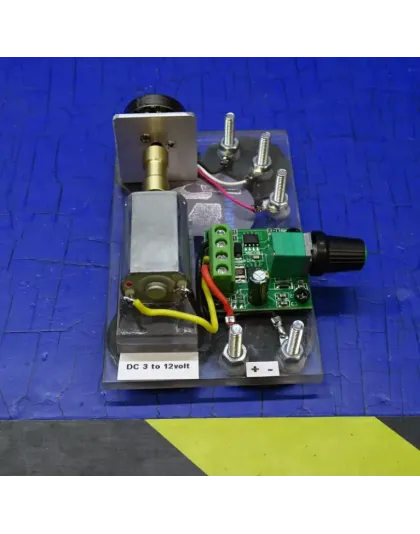

DC Motor to Three Phase Brushless Motor Generator
This is DC motor coupling with
3-Phase 16-pole  Brushless Motor / Generator.
 I have placement a speed controller to drive the motor.
The device works with DC power 3v to 12v.

DC input  -  mA input  -  Watt input  -  AC output  -  RPM
    3volt         0.300A          0.90w            9volt             4.700
    6volt         0.420A          2.50w          19volt             9.500
      9volt         0.530A          4.80w          28volt           13.400
  12volt         0.630A          7.60w          35volt           17.100
Ηow to operate it

The device works with DC power 3v to 12volt.
Just place the positive pole on screw with the "RED cable" and the negative screw "BLACK cable" side respectively.
The three screws "RED - WHITE - BLACK cables" is the AC output. The "green" power potentiometer rotary switch is to operate
the device and to increase the intensity of the output the three screws "RED - WHITE - BLACK cables"

See the videos on youtube

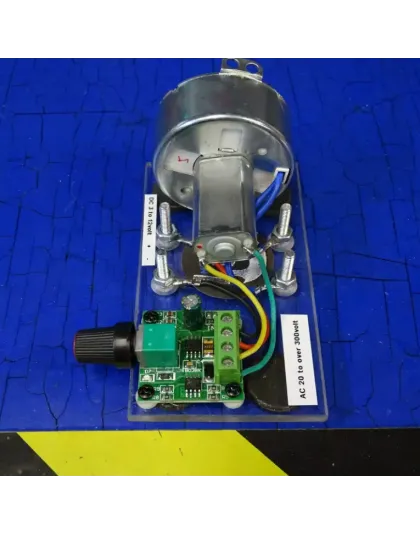

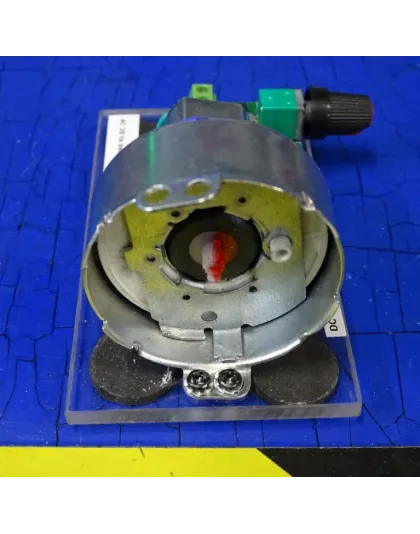

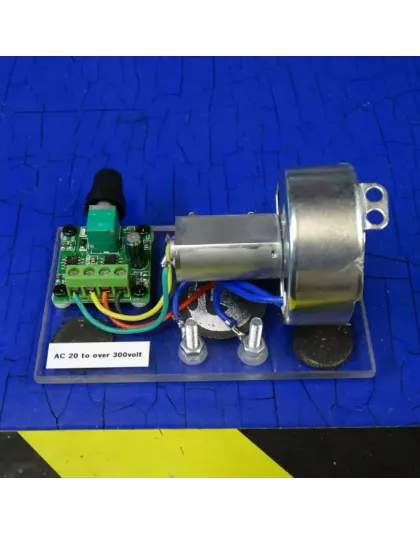

DC Motor to Permanent Magnet Synchronous Generator
This is DC motor coupling with permanent magnet synchronous motor / generator.
Βoth motors have been converted by me!

 I have placement a speed controller to drive the motor.
The device works with DC power 3v to 12v.

DC input  -  mA input - Watt input - AC output
       3volt         0.380A         1.15w        100volt
6volt         0.520A         3.10w        190volt
9volt         0.620A         5.50w        260volt
 12volt         0.690A         8.30w        320volt
Ηow to operate it

The device works with DC power 3v to 12volt
Just place the positive pole on screw with the "RED cable" and the negative screw "BLACK cable" side respectively.
The two screws "Blue cables" is the AC output. The "green" power potentiometer rotary switch is to operate
the device and to increase the intensity of the output the two screws "Blue cables"

See the videos on youtube

NOTE

Maybe there are small differences in electronic components
and materials (like bigger batteries etc) due to device enhancement for the buyer's benefit!
Shipping

Registered International Shipping

The device or the item that I send you I make sure it is well protected during the shipping mission.
Delivery

Ships within 1 to 3 business days after payment is confirmed

Returns

I do not accept a returns because all devices or the items are tested and are in perfect condition before shipping.

Contact

If you have any problems please contact me with your comments, questions or suggestions by leaving me an ebay message

Leave positive feedback

If you are satisfied with my items, it would be appreciated if you leave me a positive feedback and a 5 stars rating,
this is very encouraging for me!

Thanks
 ~ ELEMAN ~
