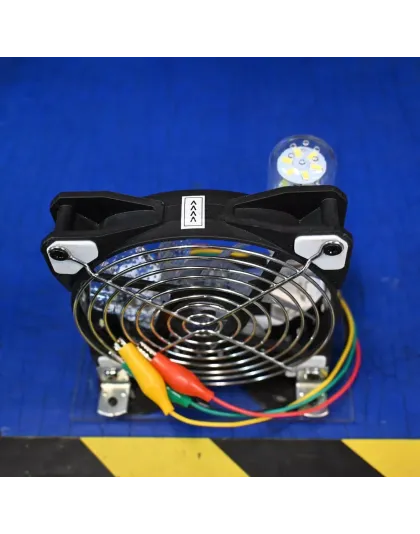

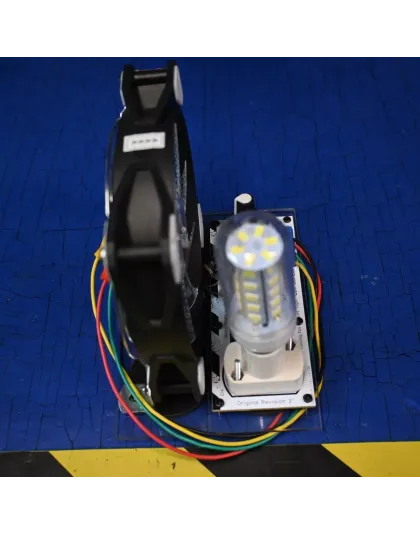

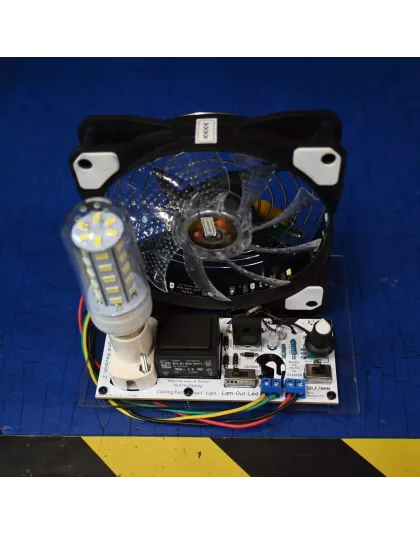

Bedini Motor SSG SELF OSCILLATING Cooling Fan & Lighting, Startup 3volt, 2024!

ELEMAN By George Chaniotakis

183.00€

Reviews (0)
Qty:

Total Price:

Add to Cart Buy Now
  • A big hello to all mankind! Visit my YouTube channel &
    and find various interesting things on Electrical ~ Mechanical and Electronic ~ Technology ...
    Buying one helps my research tremendously,
    helping me get all the supplies I need for the future.
    This is a bedini fan motor and this has three functions!
    One is the original purpose to Charging 3.7v / 6v / 9v / 12v Batteries,
     the second is to be used as Efficiency Light and
    the third one is to be used as a Fan with 15 full color beautiful Leds.
    The Bedini SSG Motor / Generator is the First REAL FREE ENERGY MACHINE
    Released To The Public. It's Been Replicated By Thousands Of Independent Experimenters
    All Over The World. The Bedini project is a set of plans that allows you to build a model
    of a patented machine that runs from one battery, turns a wheel, charges a second battery.
    John Bedini has presented a bequest to the world which can
    bring back and enrich the used, abandoned batteries.
    How Bedini SSG works...
    Since  magnets moves in the coils, a tiny electric current is stimulated into the main coils.
    This activates the transistor to switch on, enabling electricity from the operated battery
     to stream by way of the supplementary coils. The magnetic field generated in the secondary coils
    provides the cycle a tiny lift up on its path past the coils. As the magnetic field sets off the coils,
    the transistor is turned back off. This leads to the magnetic field in the supplementary
    coils to drop (back emf). During this period,
    the vibrant electric power makes its way into the process
    which is emptied via a diode into the batteries to be charged.
    This method demonstrated to generate additional energy on the
    recharging aspect compared to the need to steer the motor.
    In the method presented, the input current amounts between 10-500 mA.
    This is a New Second "Revision" at "2024"of my Bedini pcb Module.

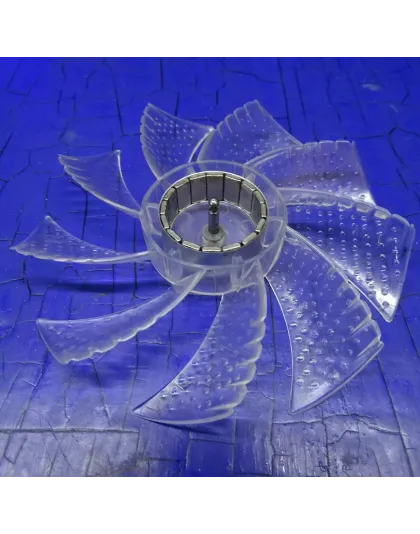

    The winding on the fan remains the same.

    "Handmade" Bedini Fan Motor with voltage operation from 3 volts to 14 volts maximum.

    This device can charge small recharge batteries in capacity - maximum 7ah / 12V "
    also recharge and use bad defective discarded batteries.
    On many occasions the battery will in fact acquire further voltage,
    workable power compared to the time it had been purchased.
    After a while and many rounds of charging the batteries have become superior to brand new.

    With small details added to electronic components that make its operation
    even better and efficient compared to the previous version.

    Now with a small toggle switch
    you will be able to drive the original "MAIN" Bedini motor in three functions.
    But also in "Self"-oscillation operation in all three functions as well.

    Light - FAN -CHARGER

    Ηow to operate it

    The Bedini has two pairs of two cables with Alligator Clips.
    First pair is the "Red - positive / Black - negative for the Primary Battery" to run the device.
    Second pair is the "Yellow - positive / Green - negative for the Charging Battery" the second battery...

    "Attention"
     Never put these cables in the wrong position! Because this will Damage the circuit.

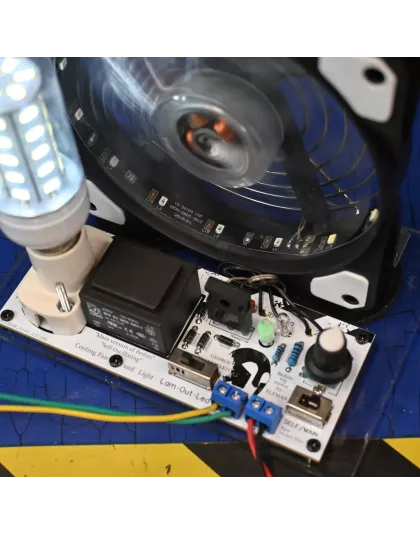

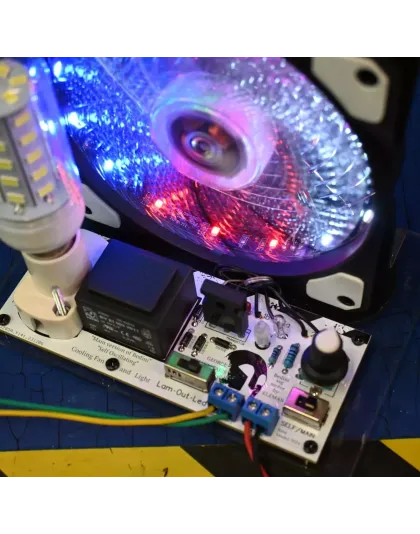

    There are "two switches" one is with three places, "left" for the lamp
    in the "middle" to charge the battery "cables with Alligator Clips
    "Yellow - positive / Green - negative" and the "right" for the full color led.

    The small switch is for the option to operate in the "Main"
    original version of Bedini or in "Self"-oscillation operation.

    Τhe Potentiometer is for "increase or decrease" the charge of the battery
    or the light bulb or the 15 full color led.

    Depending on the "operation" it performs, it has different uses.

    "Main"-operation

    When you use it to charge batteries, turning to the Right is to "increase"
    and turning to the Left is to "decrease". But you have to find the right position
    for the best results. Usually in the middle to the right you will look to find the appropriate point.

    When you use it to light a bulb or 15 full color led, turning to the Right is to "increase"
    and turning to the Left is to "decrease" on lighting.

    In this operation we have movement in the fan and synchronously with the speed
    of the fan we have pulses feeding the full color LEDs or the lamp.

    "Self" Oscillation - operation

    My circuit can make "Self-Oscillation" without moving the motor and this function
    is the "best" for charging batteries or for the lighting.

    When you use it to charge batteries, turning to the Right is to "decrease"
    and turning to the Left is to "increase".  When you use it, you will see
    the small indicator light to light up. This one is behind the Neon light, when it lights up
    it is an indication of inefficient operation and you should turn the potentiometer
    to the right until it goes off.
    Usually in the middle to the left you will look to find the appropriate point.

    When you use it to light a bulb or 15 full color led, turning to the Right is to "increase"
    and turning to the Left is to "decrease".

    Also in these functions when the indicator light is seen to light up it is an indication
    of inefficient operation and you should turn the potentiometer to the right until it goes off.

    In this operation, we do NOT have movement in the fan, but if there is, we can stop it by hand.

    Here we can apply very small supply voltages and turn on the lamp and the LEDs.

    Like Joule Thief!

    See the old videos on YouTube
    NOTE

    Maybe there are small differences in electronic components
    and materials (like bigger batteries etc.) due to device enhancement for the buyer's benefit!
    Shipping
    Registered International Shipping
    The device or the item that I send you I make sure it is well protected during the shipping mission.
    Delivery
    Ships within 1 to 3 business days after payment is confirmed
    Returns
    I do not accept a returns because all devices or the items are tested and are in perfect condition before shipping.
    Contact
    If you have any problems please contact me with your comments, questions or suggestions
  • by leaving me an message
    Leave positive feedback
    If you are satisfied with my items, it would be appreciated if you leave me

  • a positive feedback and a 5 stars rating,

    this is very encouraging for me!
    Thanks
     ~ ELEMAN ~
  • Availability: 1 In Stock
  • Model: 2024
